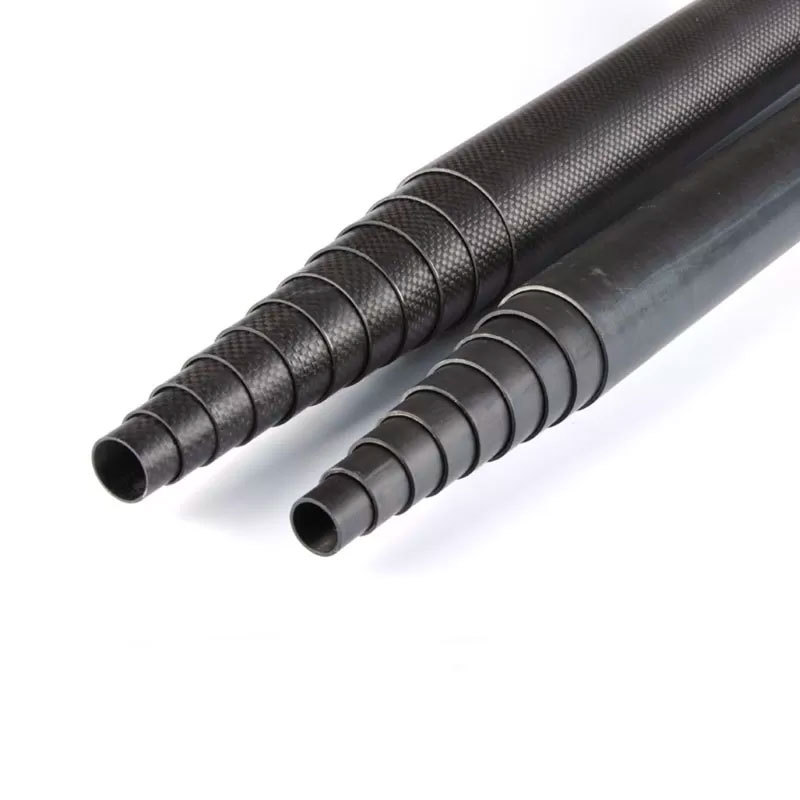

Customized 3k Carbon Fiber Tube Adjusting Telescopic Pole 10m 12m 15m 18m 20m Water Fed Pole Carbon Fiber Telescopic Pole
LIJIN 3K carbon fiber telescopic poles are designed for applications requiring long reach, lightweight construction, high stiffness, and easy adjustment. Manufactured from high-quality carbon fiber composite materials, these telescopic poles provide excellent strength-to-weight performance while remaining comfortable to handle during extended operation.
Available in 10m, 12m, 15m, 18m, and 20m lengths, our carbon fiber telescopic poles can be customized according to different working heights and application requirements. The adjustable multi-section design allows the pole to be extended or retracted quickly, making transportation and storage more convenient.
The 3K carbon fiber surface provides a clean and professional appearance, while the optimized tube structure helps maintain good rigidity even at extended lengths. Custom tube diameter, wall thickness, fiber orientation, section length, surface finish, and connection components are available for OEM projects.
These carbon fiber telescopic poles are particularly suitable for water-fed cleaning systems, window cleaning, solar panel cleaning, building maintenance, high-reach inspection, photography, and other applications requiring extended reach without excessive weight.
LIJIN supports OEM and custom manufacturing, providing carbon fiber telescopic pole solutions based on customer drawings, dimensions, performance requirements, and application needs.
Core Advantages
- Ultra-Light: 1.55 g/cm³ density—60–70 % lighter than aluminum poles
- High Rigidity: 140–160 GPa flexural modulus; sag < 1 % on full extension
- Rapid Locking: Internal taper self‑lock plus external cam clamp or quick‑release pin locks in ≤ 1 s
- Corrosion‑Proof: Stable pH 3–11, 1 000 h salt‑fog tested—zero maintenance at sea
- Wide Temperature Range: −40 °C to +180 °C continuous; instant 200 °C tolerance
Structural Styles
- Taper‑Fit Sections: 0.8–1.5° taper—tightens under extension, zero play
- Straight Sections: 0.08–0.12 mm concentric clearance + spiral lock ring
- Hybrid Design: Base straight tube + tapered top segments for maximum straightness and stiffness
Typical Applications
- Marine Fishing: 3.6 m 7‑section pole, 30 kg load, 580 g total weight
- Fire Rescue: 10 m 9‑section rod + hydraulic lock, 60 kg throw
- Solar Maintenance: 6 m 6‑section brush pole—single‑person roof cleaning
- Photography: 5 m 6‑section mast + 360° head for high‑altitude shots
- Medical: 2 m 5‑section foldable stretcher rod—fits in ambulance trunk
Specifications
| Name |
Carbon Fiber Telescopic Pole |
| Material |
High modulus carbon fiber, 100% carbon fiber, fiberglass, hybrid carbon fiber |
| Size |
A standard size and customized |
| Closed Length |
A standard size and customized |
| Extend Length |
A standard size and customized |
| Top/ Bottom Dimension |
As customized |
| Weave |
With 3k twill/plain weave or just a black surface |
| Finish |
Glossy, matte, smooth, or with threads (more wear-resistant) |
| Excellent Properties In |
1. Corrosion resistance
2. Super strength & lightweight
3. Good toughness
4. Factory direct sale
|
Appearance
This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3k woven carbon fibre so that the tube has the classic appearance of woven carbon fibre (the same as our carbon fibre sheets for example). This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.
To achieve the smooth, glossy appearance the tubes are surface ground, lacquered (with high-gloss UV-resistant lacquer), and then polished. The result is a carbon fibre tube of unrivalled visual appearance making it ideally suited for use in applications where it will be seen.
Performance
Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.
,
